Computer Vision

Assignments

We had a couple of assignments and you can see the results here.

Ellipses

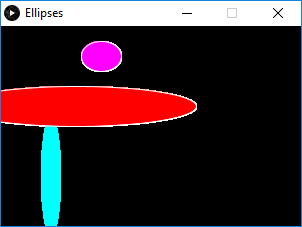

The first assignment was to draw three different ellipses. I challenged myself to make a Ellipse class. You can see the result below the code.

Ellipse c1 = new Ellipse(100, 30, 40, 30, color(255,0,255), true);
Ellipse c2 = new Ellipse(50, 150, 20, 120, color(0,255,255), false);
Ellipse c3 = new Ellipse(75, 80, 240, 40, color(255,0,0), true);
void setup() {
	size(300,200);
	background(0);
}
void draw() {
	c1.update();
	c2.update();
	c3.update();
}
class Ellipse {
	int tempX, tempY, tempW, tempH;
	color tempF;
	boolean tempS;
	Ellipse(int x, int y, int w, int h, color f, boolean s) {
		tempX = x;
		tempY = y;
		tempW = w;
		tempH = h;
		tempF = f;
		tempS = s;
	}
	void update() {
	    fill(tempF);
	    if (tempS == true) {
	    	stroke(255);
	    } else {
	    	noStroke();
	    }
	    ellipse(tempX, tempY, tempW, tempH);
	}
}

Shapes

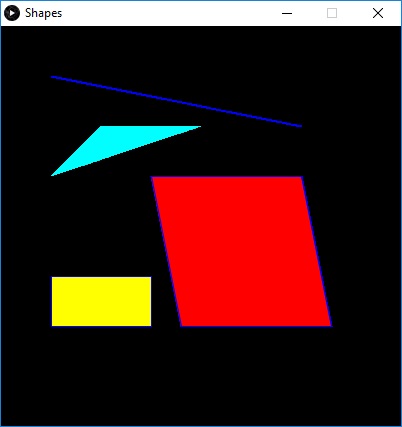

I changed the code from the previous assignment to create four different shapes.

Shape s1 = new Shape(50, 50, 300, 100, color(255,0,255), true, 1);
Shape s2 = new Shape(100, 100, 50, 150, color(0,255,255), false, 2);
Shape s3 = new Shape(150, 150, 150, 150, color(255,0,0), true, 3);
Shape s4 = new Shape(50, 250, 100, 50, color(255,255,0), true, 4);
void setup() {
 size(400,400);
 background(0);
}
void draw() {
	s1.update();
	s2.update();
	s3.update();
	s4.update();
}
class Shape {
	int tempX, tempY, tempW, tempH, tempShape;
	color tempF;
	boolean tempS;
	Shape(int x, int y, int w, int h, color f, boolean s, int shape) {
		tempX = x;
		tempY = y;
		tempW = w;
		tempH = h;
		tempF = f;
		tempS = s;
		tempShape = shape;
	}
	void update() {
		fill(tempF);
		if (tempS == true) {
			stroke(0, 0, 255);
		} else {
			noStroke();
		}
		switch(tempShape) {
			case 1:
				line(tempX,tempY,tempW,tempH);
				return;
			case 2:
				triangle(tempX,tempY,tempW,tempH,tempX * 2, tempY);
				return;
			case 3:
				quad(tempX,tempY,tempX * 2,tempY, (tempX * 2) * 1.1, tempY * 2, tempX * 1.2,tempY * 2);
				return;
			case 4:
				rect(tempX,tempY,tempW,tempH);
				return;
			default:
				ellipse(tempX, tempY, tempW, tempH);
		}
	}
}

Mouse tracking

After trying a couple of exercises with the mouse I did the assignment where I needed to use the mouse to make two different shapes move and change. I made a bouncy line that stretched when you would pull it down.

void setup() {
 size(800,800);
 background(255);
 ellipseMode(CENTER);
}
void draw() {
  background(255);
  stroke(0);
  strokeWeight(map(mouseY, 0, 800, 100, 0));
  line(width/2,0, mouseX, mouseY);
  noStroke();
  fill(map(sin((mouseY+mouseX) * 0.01), 0, 1, 0, 255),map(mouseX, 0, 800, 0, 255),map(mouseY, 0, 800, 0, 255));
  ellipse(mouseX, mouseY, 100, 100);
}

Facial recognition

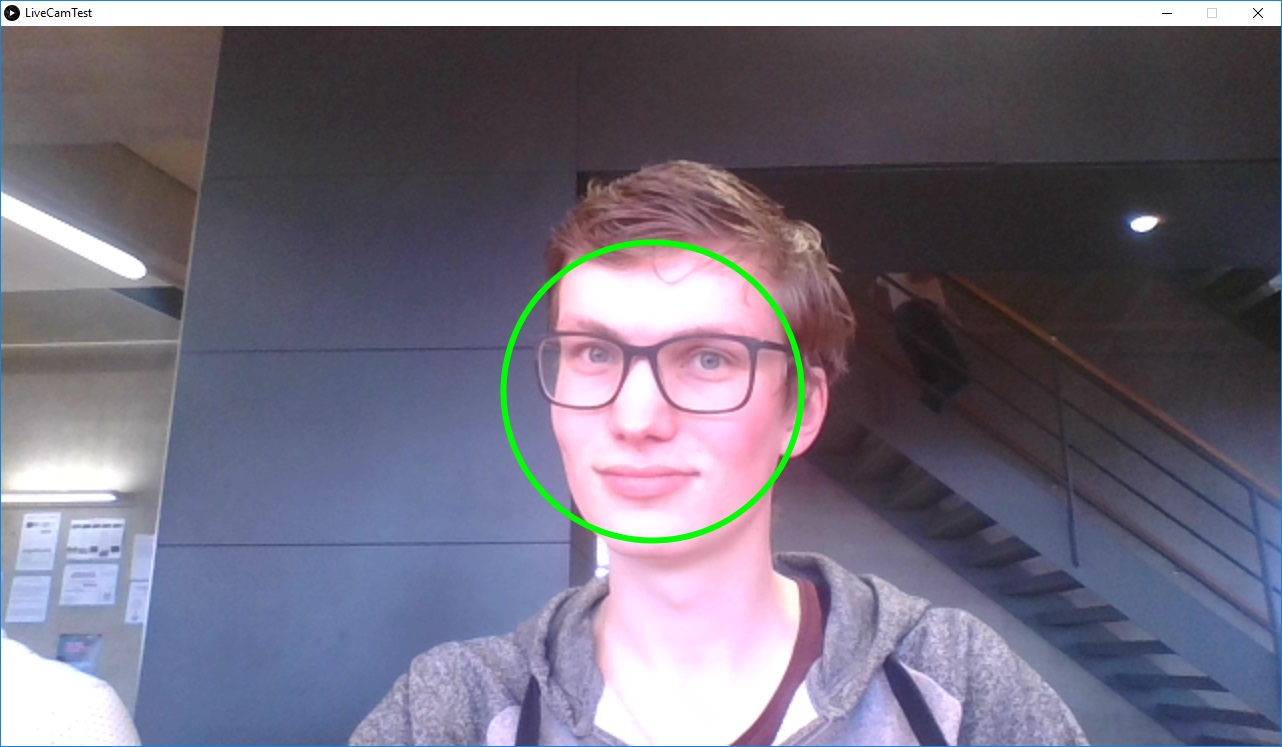

In this assignment I only needed to change a rectangle to a circle using facial recognition the openCV library.

import gab.opencv.*;
import processing.video.*;
import java.awt.*;
Capture video;
OpenCV opencv;
void setup() {
  size(1280, 720);
  video = new Capture(this, 1280/2, 720/2);
  opencv = new OpenCV(this, 1280/2, 720/2);
  opencv.loadCascade(OpenCV.CASCADE_FRONTALFACE);
  ellipseMode(CORNER);
  video.start();
}
void draw() {
  scale(2);
  opencv.loadImage(video);
  image(video, 0, 0 );
  noFill();
  stroke(0, 255, 0);
  strokeWeight(3);
  Rectangle[] faces = opencv.detect();
  println(faces.length);
  for (int i = 0; i < faces.length; i++) {
    println(faces[i].x + "," + faces[i].y);
    ellipse(faces[i].x, faces[i].y, faces[i].width, faces[i].height);
  }
}
void captureEvent(Capture c) {
  c.read();
}

Clowns nose

We had to put something on a part of our face by setting a different cascade. I gave myself a clowns nose.

import gab.opencv.*;
import processing.video.*;
import java.awt.*;
Capture video;
OpenCV opencv;
void setup() {
  size(1280, 720);
  video = new Capture(this, 1280/2, 720/2);
  opencv = new OpenCV(this, 1280/2, 720/2);
  opencv.loadCascade(OpenCV.CASCADE_NOSE);
  ellipseMode(CORNER);
  video.start();
}
void draw() {
  scale(2);
  opencv.loadImage(video);
  image(video, 0, 0 );
  fill(255,0,0);
  noStroke();
  strokeWeight(3);
  Rectangle[] faces = opencv.detect();
  println(faces.length);
  for (int i = 0; i < faces.length; i++) {
    println(faces[i].x + "," + faces[i].y);
    ellipse(faces[i].x, faces[i].y - 10, faces[i].width, faces[i].width);
  }
}
void captureEvent(Capture c) {
  c.read();
}

Wasps

I used the OpenCVMultipleColorTrackingLiveCam library to add wasps to the video stream and moved them with my arm.
